What's new in AudioCodes Microsoft Teams Rooms devices?
AudioCodes offers a range of Microsoft Teams Rooms (MTR) devices designed to enhance meeting experiences. The RXV200 Android compute MTR is a versatile solution that supports various cameras, audio sources, and AI applications. The RXV81 is a standalone MTR on Android™ video bar. Both RXV200 and RXV81 are available in a bundle with the RX-PAD, an intelligent touch controller that provides easy access to meeting room solutions and one-click collaboration. Additionally, the RX-PANEL Meeting Room Scheduler is a purpose-built Microsoft Teams Panel with an intuitive touchscreen display, allowing users to quickly see room availability and reserve meeting rooms on the spot.
Release Versions:
Want to be among the first to get the latest AudioCodes device releases?
Supported Models:
- RXV81 - RXV81 Admin Manual
- RXV81 BYOD - RXV81 BYOD Admin Manual
- RXV200 - RXV200 Admin Manual
- RX-PAD - RX-PAD Admin Manual
- RX-PANEL - RX-PANEL Admin Manual
Microsoft Applications:
MTRA Microsoft Teams App MTRA: Version 2.4.3 (2025031102) - For Microsoft’s ‘Release Notes for Microsoft Teams Rooms’, click here.
RX-PANEL Teams App: Version 3.3.2 2025031901 - For more information, click here.
Admin Agent: Version 753
Authenticator App: Version 6.2410.7268
Microsoft Intune: Version 24.09.1
Main Features In This Release:

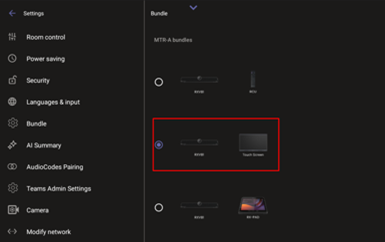

New Bundle - RXV81 with Touch Screen Display
A new bundle is now supported (RXV81-B09), allowing the use of the RXV81 with a touch screen display.

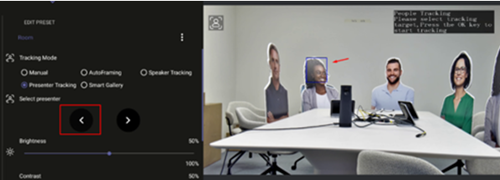

Presenter Tracking Mode for Non-Composite AI
In Camera Settings, when the Composite AI is disabled, the user can select the presenter they want the camera to track:
Content Camera Framing on a Whiteboard
For RXV200, presenters can share their physical whiteboard with remote participants using the Content Camera feature. To optimize the view, use the Transform Settings to define and capture the area precisely, isolating the whiteboard and removing unwanted margins beyond its edges.

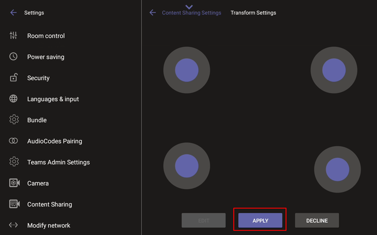

Use the four joysticks displayed on the RX-PAD to adjust the boundaries of the content camera's capture area:
Here is what the Administrator sees while adjusting the boundaries:
Here is the board's final display:
Change Camera Settings During a Call
During active Teams meetings, non-admin users are now granted access to the Composite AI Settings. This allows users to adjust layouts and toggle on or off the Smart Gallery or Room View features, for the duration of the meeting. Once the meeting concludes, these settings automatically revert to the system's pre-configured defaults.
Automatic HDMI Source Selection
This feature improves the user experience when multiple HDMI-IN inputs are used, typically involving both a physical HDMI-IN input and a wireless HDMI-IN (from an RX-PAD).
- When a new HDMI-IN input is connected during a sharing session, it automatically becomes the current active source.
- When an HDMI-IN input is unplugged, the remaining connected HDMI-IN source automatically becomes the active source.
Enhanced Screen Sharing via RX-PAD HDMI-IN Port for RXV81 and RXV200
The functionality that allows users to share their PC screen via the RX-PAD HDMI-IN port has been enhanced:
- Enhanced Performance: Experience faster connectivity and more reliable screen sharing.
- Simplified Setup: No need to configure firewall rules that were previously required.
This enhancement ensures a seamless and efficient screen sharing experience, making it easier for users to present their content during meetings.

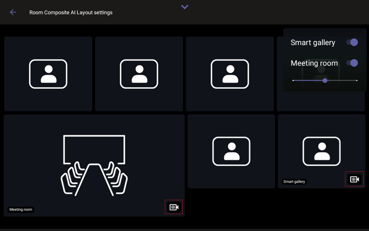

Composite AI Camera Settings
Users and administrators can now adjust individual camera settings , such as brightness and saturation, without leaving the Room Composite AI Layouts. Within the composite view, each camera layout displays a dedicated camera icon. Taping the icon opens the settings specifically for that camera's feed. This helps users to easily associate a camera view with its adjustable settings.
Room Control Integration - Trusting Non-Standard Certificates
Some third-party Room Control systems use certificates that are either self-signed or not issued by a well-known Certificate Authority (CA). Users now have the option to manually trust these certificates during setup. It can be done from the Device Settings menu, Room Control.
Return to Previous Firmware Version
When users receive a build for testing and they complete the testing, users need to switch back to the previous firmware version. This version is the General Availability (GA) build running on the device.
To do this, the user needs to change the active firmware slot and perform a factory reset. They can do this by selecting the new Return to previous version option in the Admin Debugging menu.
Supported Models:
- RXV81
- RXV200
- RX-PAD
- RX-PANEL
Microsoft Applications:
- MTRA Microsoft Teams App MTRA: 2.4.1 (2025010301).
For Microsoft’s ‘Release Notes for Microsoft Teams Rooms’, click here. - RX-PANEL Teams App: 3.3.0 2024122401.
For more information, click here - Admin Agent 733
- Authenticator App: 6.2410.7268
- Microsoft Intune: 24.09.1
Main Features In This Release:
[RXV200] Composite AI Feature for AudioCodes RXV200 Meeting Room Device
The new Composite AI feature enhances video conferencing on the AudioCodes RXV200 meeting room device by intelligently combining streams from two cameras into a single, cohesive layout. This innovation provides remote participants with an optimized, immersive view of both the meeting room and its participants.
Composite AI toggle will be enabled only on the following supported setups:
- RXV200 with RXVCam70: Combines streams from the RXVCam50 (full-room view) and RXVCam360 (Smart Gallery mode).
- RXV200 with RXVCam360 and RXVCam50: Utilizes the dual cameras of the RXVCam70, including the wide-angle camera (full-room view) and the mechanical camera (Smart Gallery mode).

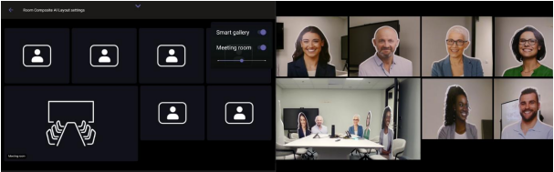

Composite AI layout, taken from the RXV200 Camera settings:
[RXV200, RXV81] New Wizard for Setting Up MTRA - Enhanced OOB Experience for MTRA Setup
Version 2.8.208 introduces a new wizard designed to improve the out-of-box (OOB) experience when setting up the MTRA.
Among other things, it prompts the user to connect to an input device if it does not exist, prompts users to select their preferred language during the setup process, ask to choose the right bundle when there is a need and also pairs the MTRA (RXV81/RXV200) from RX-PAD

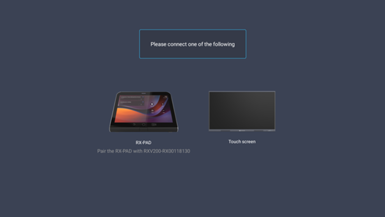

Request to connect to an input device:

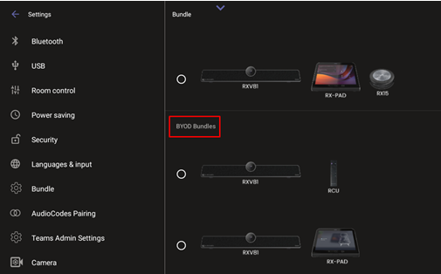

[RXV81] New Bundles for BYOD
Version 2.8.208 introduces new bundles for RXV81 BYOD:
[RXV200, RXV81] AudioCodes Pairing – New Menu for Managing Paired Devices
A new menu, Settings > AudioCodes Pairing, has been added to manage paired devices. Admin can control the devices paired with the current RX-PAD. Admin has the option to pair a new device or unpair an existing one (note that unpairing from Teams must be done before pairing with a new device).
[RXV200] Support for Dual Touch Screen for AudioCodes RXV200
The Dual Touch Screen feature enhances usability and setup flexibility for the RXV200 when connected to two touch screens. Previously, dual-screen setups supported only one touch screen. This update enables full support for two touch screens, ensuring proper calibration and orientation of touch inputs during the Out-of-Box (OOB) setup process.

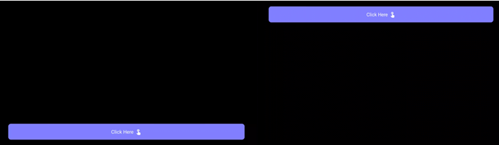

The following screens display and the admin is required to physically interact with the buttons displayed on each screen:

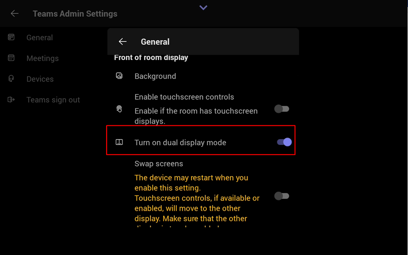

[RXV200] Dual Display Mode and Swap Screens Admin Controls (For Pro room accounts)
IT admins can configure Teams Rooms on Android devices to run in dual display mode. Admins can also switch the screens of dual display rooms using the swap screens setting, easily correcting front-of-room displays that were set up invertedly. Both controls are accessible from the device settings and Teams Admin Center
Supported Models:
- RXV81
- RXV200
- RX-PAD
- RX-PANEL
Microsoft Applications:
- MicrosoftTeams-2024092304 (a.k.a. 1.3.1).
For Microsoft’s ‘Release Notes for Microsoft Teams Rooms’, click here - RX-PANEL Teams App: 3.2.1 2024102301.
For more information, click here - Admin Agent 733
- Authenticator App: 6.2410.7268
- Microsoft Intune: 24.09.1
Main Features In This Release:
Migration to Android Open-Source Project (AOSP)
Starting from this release, Microsoft Teams Android devices now use Intune Android Open Source Project (AOSP) device management. This migration allows for better integration and management of Teams Android devices within the Intune ecosystem.
Supported Models:
- RXV81
- RXV200
- RX-PANEL
Microsoft Applications:
- MicrosoftTeams-2024080804 (a.k.a. 2.3.0): custom backgrounds, allowing IT admins to upload custom background images on the Teams admin center to reinforce their company brand on their Teams Rooms on Android devices.
- Join Zoom meetings with an ID and passcode: Users can now join Zoom meetings with an ID and a passcode on Teams Rooms on Android.
- RX-PANEL Teams App 3.2.0 (2024081207)
- Admin Agent 733
- Microsoft Intune Company Portal 5.0.6152
Main Features In This Release:
[RXV200] A new bundle B70 is available in this version
It includes:
- RX-PAD
- RXVCam70
- RX40
[RXV200] A new bundle B360 is available in this version
It includes:
- RX-PAD
- RXVCam360

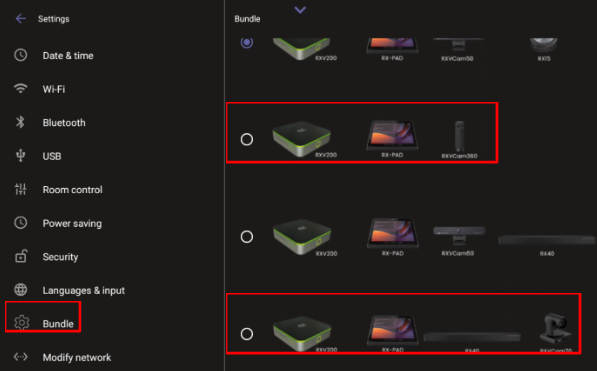

The figure below shows the two newly added bundle options:
[RXV200, RXV81, RX-PAD, RX-PANEL] Firmware Downgrade Block
Introduced to prevent conflicts between Microsoft Teams admin center (TAC) and AudioCodes’ OVOC Device Manager.
[RXV200] Peripheral Device Downgrade Restrictions
Downgrading peripheral devices to a version older than the built-in release on the RXV200 is restricted.
[RXV200] Updated Firmware for RXVCam70 and RXVCam360
Includes updated firmware for these cameras.
[RXV200] RXVCam50 Camera Quality Improvement

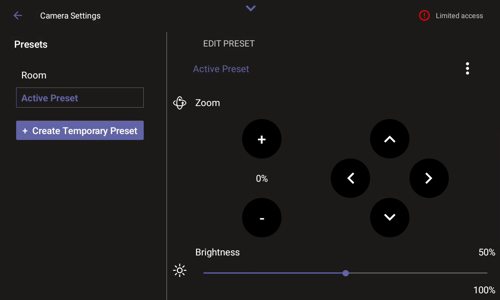

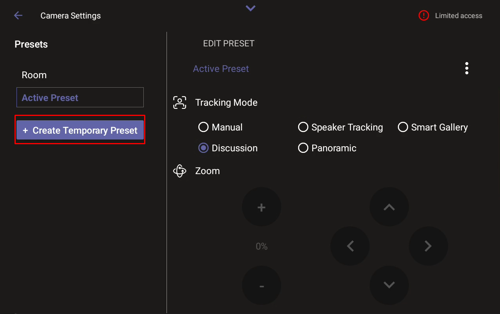

[RXV200, RXV81] RX-PAD Camera Settings Enhanced User Experience
RX-PAD’s Camera Settings have been enhanced for a smoother and more intuitive user experience. Zoom adjustments now offer greater precision and control. Additionally, navigation arrows have been introduced for Tilt and Pan functionalities, providing a more natural and seamless interface for these movements.
Supported Models:
- RXV81
- RXV200
- RX-PANEL
Microsoft Applications:
- MicrosoftTeams-2024061103 (a.k.a. 2.22)
- RX-PANEL Teams app 2024071105 (3.1.1)
- Admin Agent 703
- Microsoft Intune Company Portal 5.0.6152
Main Features In This Release:
[RXV200, RXV81] Share the user’s PC screen via the RX-PAD HDMI In port.
The connection has been improved and is now much faster than previously.
[RXV200, RXV81] MTRA ‘Bundle Settings’ are now supported from RX-PAD
Downgrading peripheral devices to a version older than the built-in release on the RXV200 is restricted.
[RXV200] Updated Firmware for RXVCam70 and RXVCam360
Before version 2.6, this feature was only supported via the MTRA Front of Room using RX-PAD’s remote keyboard. In version 2.6, the bundle settings are easily accessible from RX-PAD (relevant for RXV81 or RXV200).
